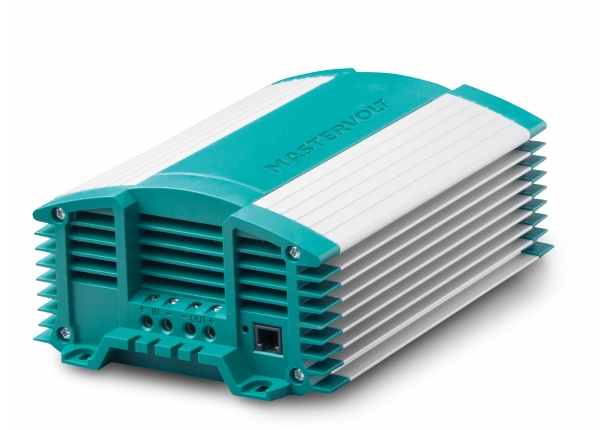

The Magic models can regulate the voltage both up and down to ensure an optimal voltage stabilisation, even when the battery voltage fluctuates due to heavy loads. The galvanic isolation between input and output prevents disruptions to, for instance, communication equipment.
The isolated Magic models provide galvanic isolation between input and output circuits.
Remote control the Magic via your laptop or PC or configure your personal preferences. The device has a communication port and easy installation with a PC-Link and MasterAdjust software.
Many standard light dimmers convert part of the energy to heat and also lose unnecessary energy. The Magic converters regulate the power supply efficiently and without excessive heat build-up, for optimal safety (multiple converters can be used for multiple lamps).
Lots of consumers on board?
The parallel configuration of several units will provide you over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimum power loss when switching from 24 to 12 V and vice versa.
The Magic DC-DC converters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions, these DC-DC converters operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mastervolt concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the DC-DC converters are ideal for the toughest tasks and any situation that requires a reliable power supply.
|Output voltage||20-28.5 V|
|Nominal output voltage (adjustable with MasterAdjust)||27.2 V|
|Output voltage dimmer (adjustable with MasterAdjust)||8-26 V|
|Output voltage stabilisation||2 % at extremes of temperatures, load and input|
|Output voltage ripple (peak peak)||max. 1 %|
|Max. output power||300 W|
|Nominal output power||300 W|
|Max. output current||10 A|
|Output charge current (3-step mode)||8 A|
|Nominal input voltage||12 V|
|Input voltage range||11-16 V|
|Input voltage range (3-step charge mode)||12-16 V|
|Lower input set point (adjustable with MasterAdjust)||10 V|
|Delay lower input set point (adjustable with MasterAdjust)||30 sec.|
|Efficiency||>90 % (nom. input voltage, full load); peak 92 %|
|Dimmer function||yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting|
|Alarm contact||yes, through MasterBus|
|Dimensions, hxwxd||227 x 154 x 81 mm|
8.9 x 6.1 x 3.2 inch
|No-load consumption||< 2 mA|
|Battery types||flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined|
|3-Step charge option||yes (DIP switch settings)|
|DC consumption||< 115 mA|
|Connections||screw terminals (max. wire size 16 mm² / AWG5)|
|Temperature range (ambient temp.)||-25 °C to 60 °C, derating > 40 °C|
-13 °F to 140 °F
|Cooling||maintenance free vario fans|
|Protections||against over load & over temperature|
|MasterBus compatible||yes, in combination with a MasterBus Serial Interface|
